Mini desktop amp | 550mW high power | Dual CS43131 DACs
Dual 8262 op-amps | PCM 384kHz/32bit | DSD256
3.5+4.4 dual outputs | App connectivity | SPDIF output
Ambient light window
From the portable desktop-level unit M17, the portable desktop-grade DAC and amp Q7, to the more portable yet desktop-capable M15S, audiophiles’ warm reactions to these models prove many love desktop-level audio gear. After being successfully applied to the three high-end models, the desktop mode will now evolve and be applied to audio dongles.
The FiiO KA13 mini desktop amp features a desktop mode to fully unleash its performance. Let us show you what dongles can do, reaching the incredible heights of desktop-level gear.
With two high-performance yet highly efficient CS43131 DAC chips and two low-noise SGM8262 op-amps, this truly “dual-core” golden combo brings excellent performance. Rediscover your music collection again full of newly discovered details with the KA13.

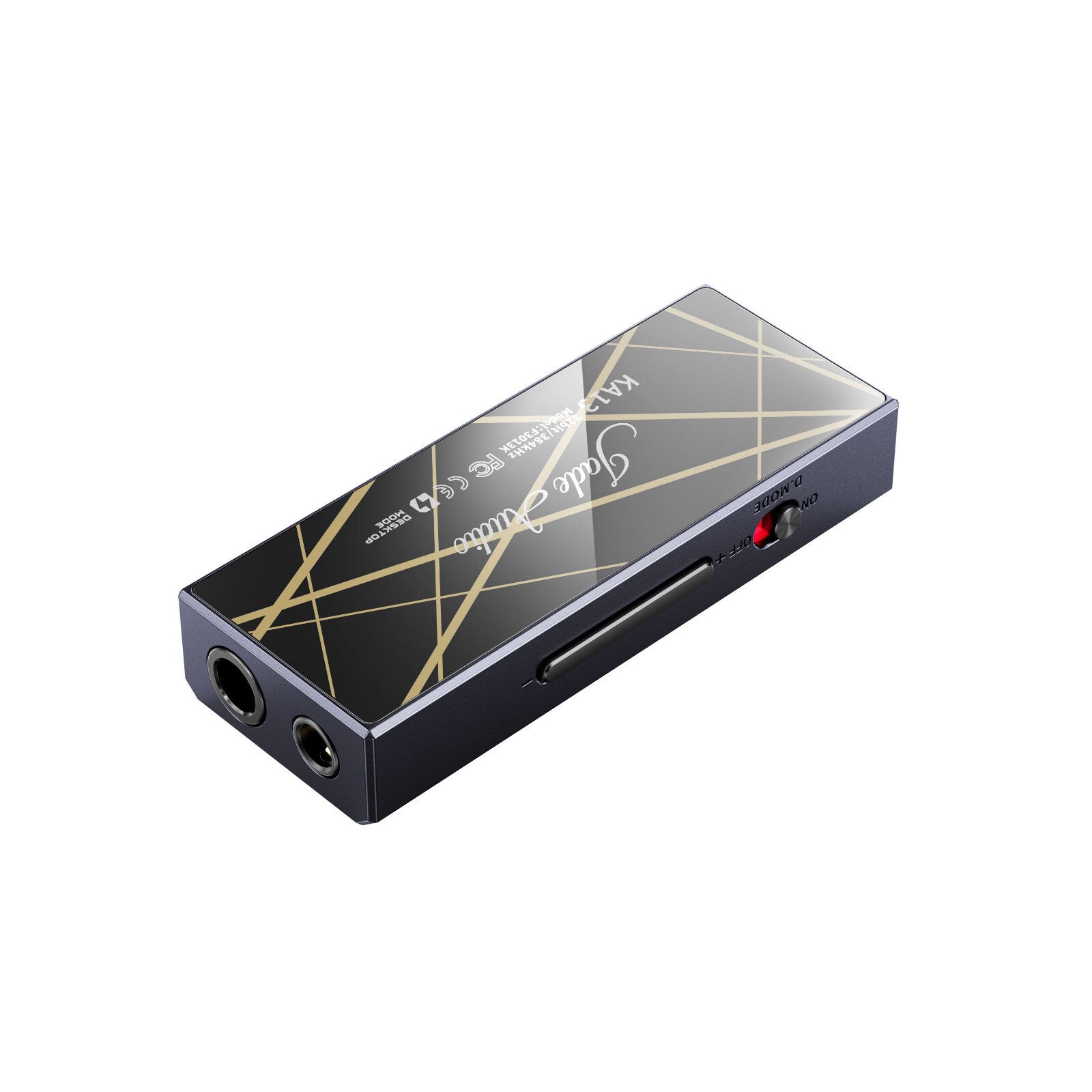

The KA13 features a desktop mode, which the engraved lightning bolt logo hints at. In desktop mode, balanced output power goes up to 550mW, allowing the KA13 to drive both low and high-impedance headphones with excellent dynamics and detail.
With support for 32bit/384kHz PCM and DSD256, the KA13 despite its tiny size is capable of highly-detailed sound. Hear the details and get a better look into your music.
The KA13 not only manages to fit a 3.5mm single-ended headphone out, it also manages to pack a 4.4mm balanced headphone out. FiiO engineers repeatedly adjusted the design of the KA13 and finally managed to fit two headphone outputs in the compact dongle, marking true progress in packaging capabilities.
*3.5mm interface supports SPDIF output. After turning on SPDIF output through the FiiO Control app, you can convert USB audio signals to coaxial SPDIF signals to connect to external DACs in other audio setups.
The KA13 features a detachable cable design. When combined with the included Type-C and Lightning adapter cables, you can listen with various systems * without having to immediately purchase another cable.
*Compatible with Android, iOS, Windows, Mac.
The RGB ambient light window not only looks good, but also lets you quickly know the sampling frequency of your audio – letting you feel the charm of a device “Born For Music.”
*RGB ambient light window can be turned off through the FiiO Control app on Android devices.
The KA13 supports being controlled with the FiiO Control app. With the app, you can set the RGB lights, SPDIF output, audio filters, etc. for a more convenient experience.
*FiiO Control app’s control over KA13 only supported on Android devices.

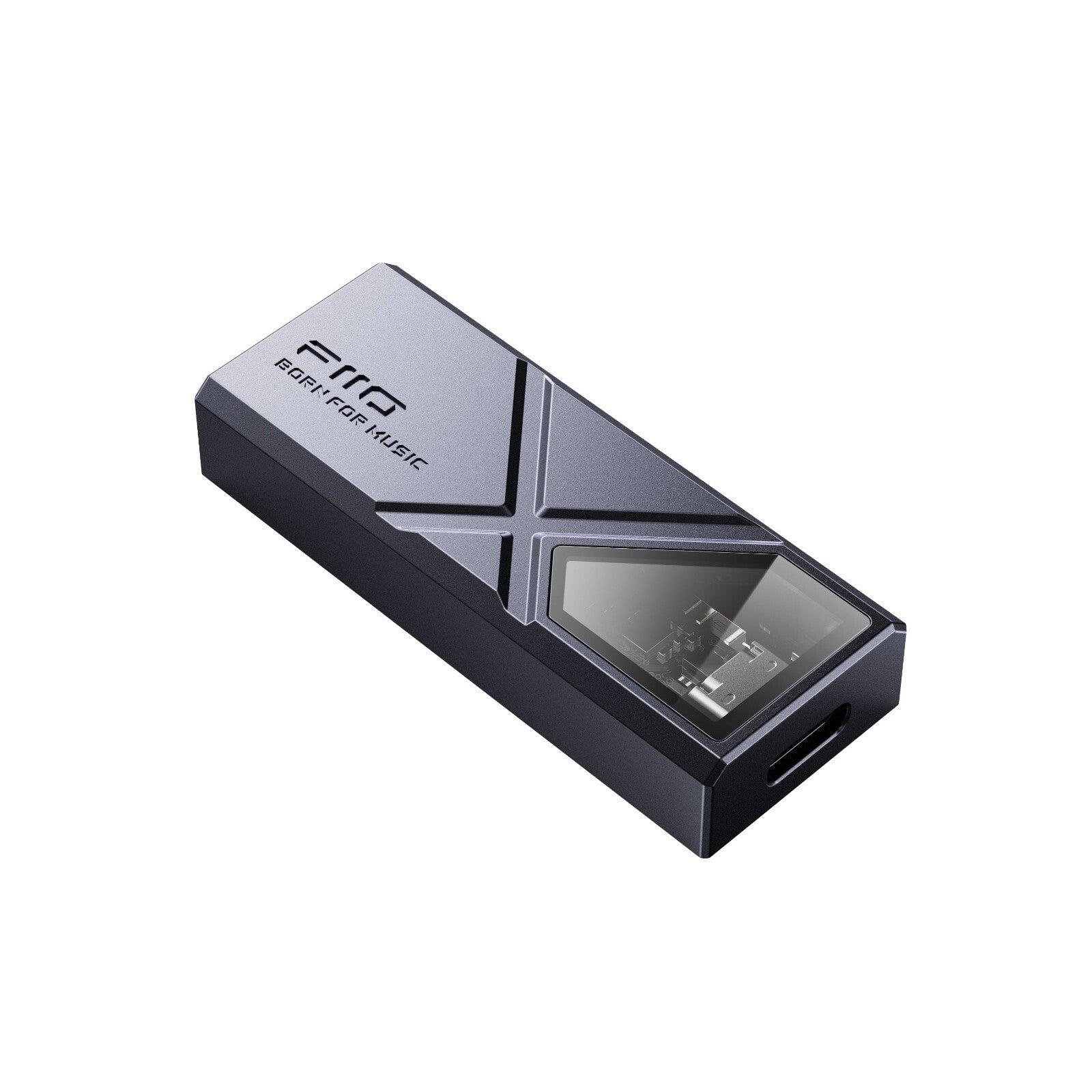

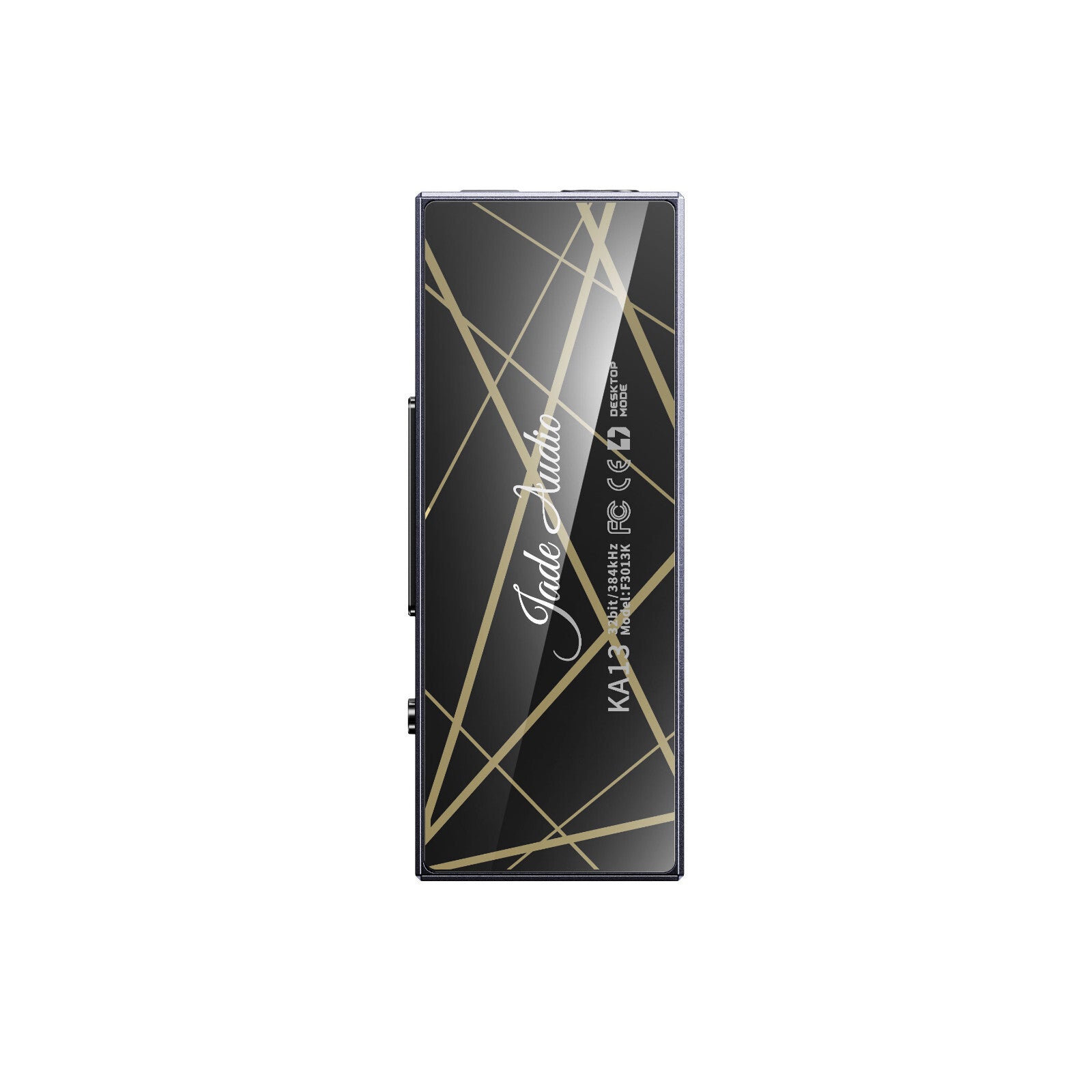

The front of the CNC metal body features unique lines, while the rear contains exquisite texture, for an aggressive yet futuristic look. The KA13 is also soft to the touch, for greater comfort every time you use it.
*KA13’s front-panel glass features an anti-scratch film.

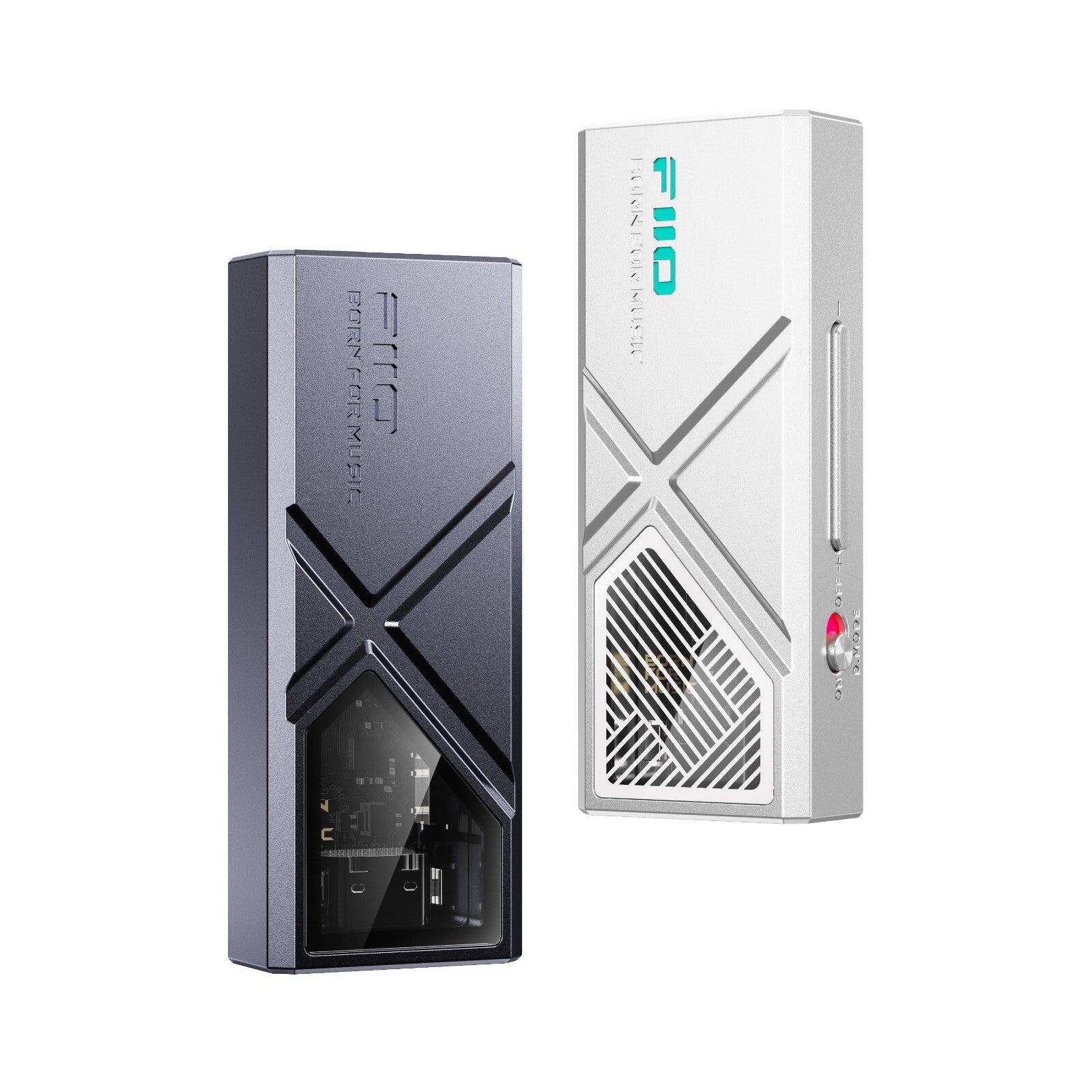

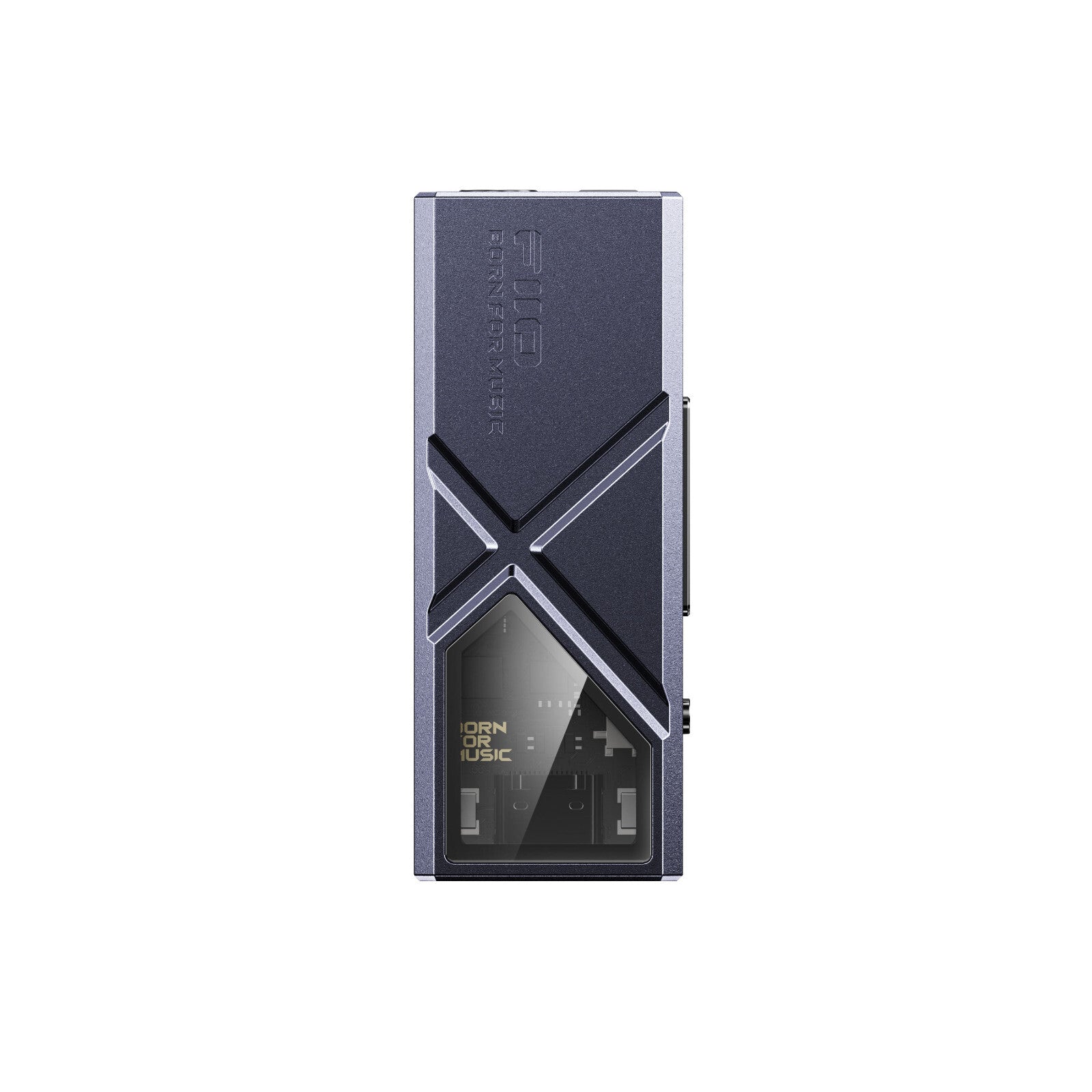

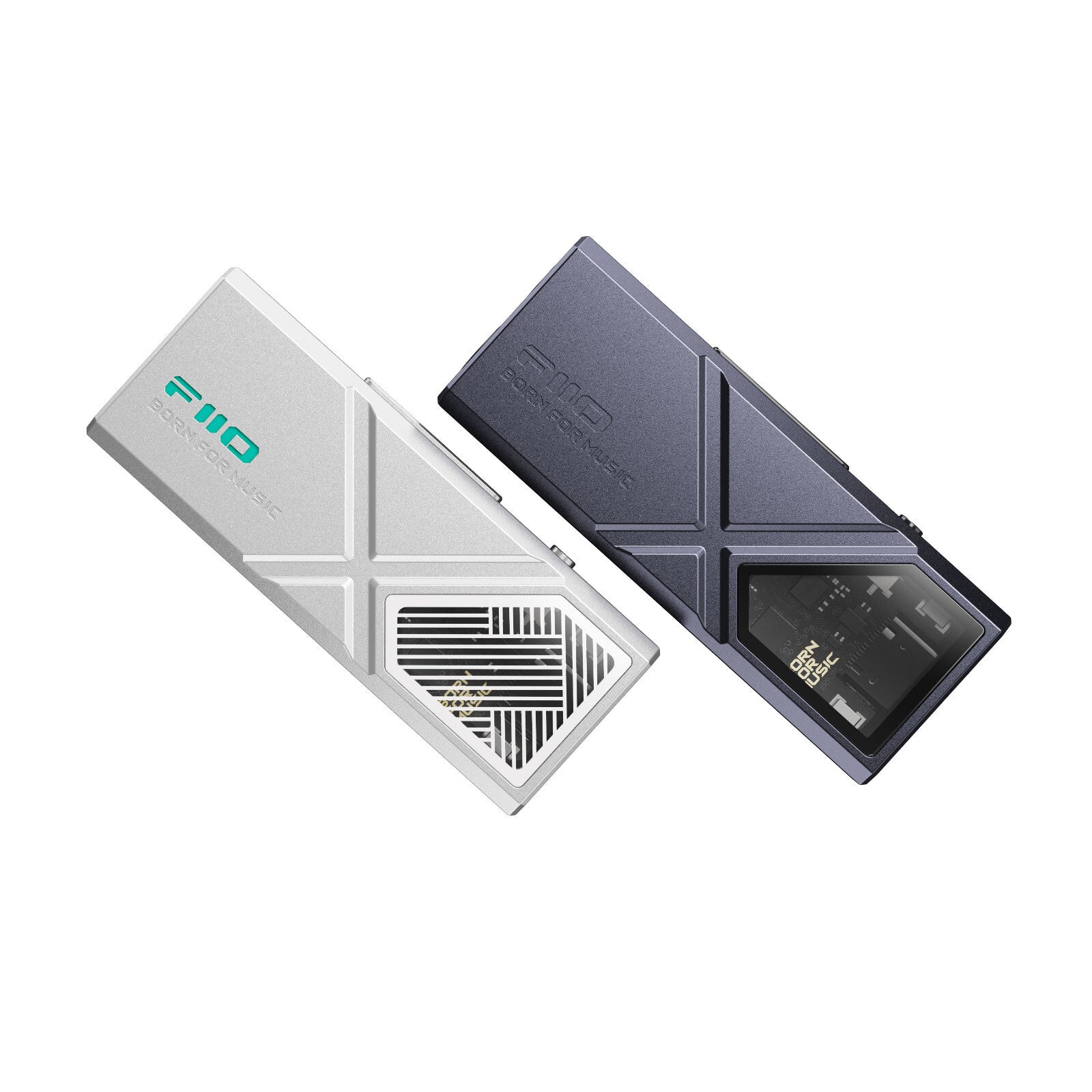

Midnight Black : Pure, calm elegance.

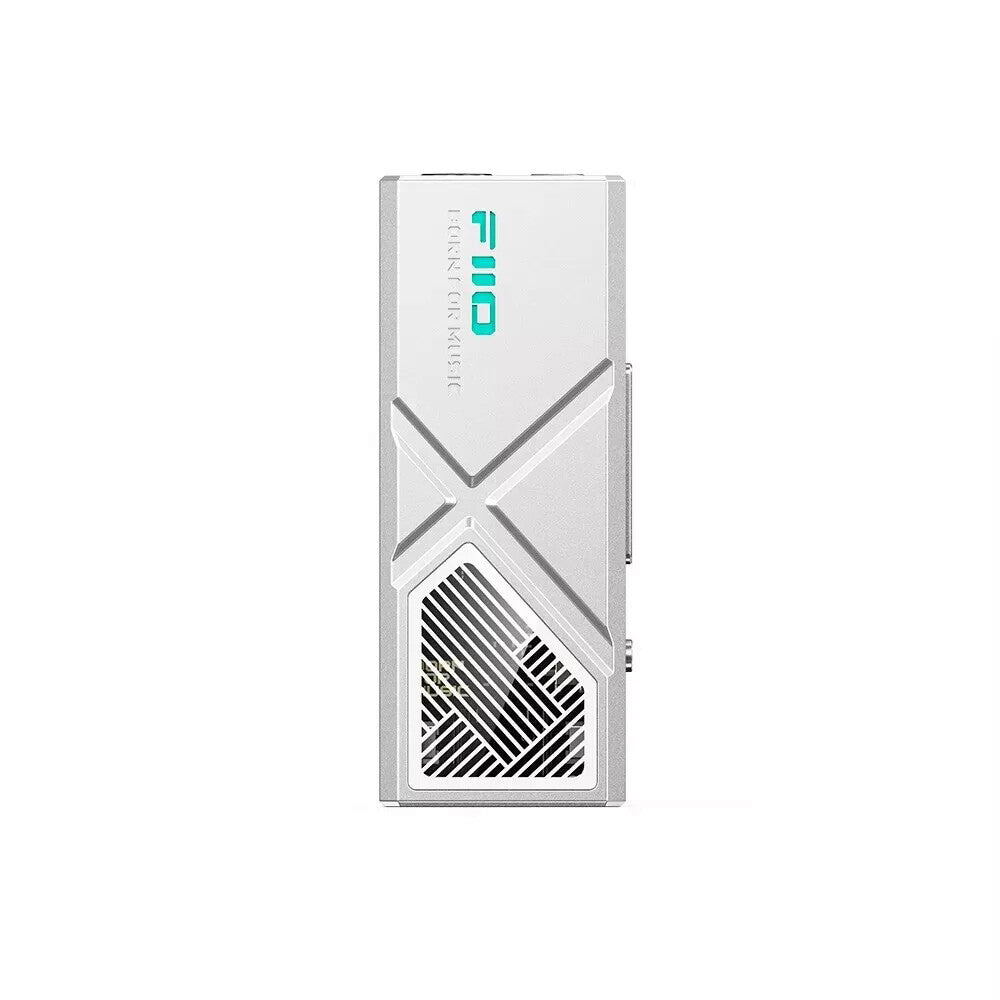

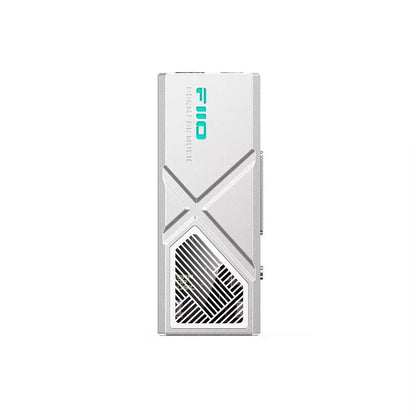

Dawn Silver : Cool, yet vibrant color.
| General Specifications | |||
| Name/Model | KA13 | Hardware solution | DAC: CS43131 *2 |
| Color | Midnight black/Dawn silver | Dimensions | About 56.5*22*10.5mm |
| Weight | About 19g | Adaptive impedance | PO: 16~150Ω |
| Sampling rate indication | RGB ambient light | BAL: 16~300Ω | |
| Max supported sampling rate | 384K/32bit | Firmware upgrade | System firmware can be upgraded via USB |
| DSD64/128/256 | FiiO control | Supported | |
| 384K/32bit (coaxial) | |||
| Buttons and Ports | |||
| USB port | Type-C USB | 3.5mm plug | Single-ended/SPDIF output (shared) |
| Physical button | Adjust volume, switch songs | 4.4mm plug | Balanced output |
| Toggle switch | Desktop mode switch | ||
| Audio Parameters | |||
| Parts of performance and parameters (3.5mm headphone out, THD+N<1%, USB IN) | |||
| Output power | L+R>290mW+290mW@16Ω(Desktop Mode ON) L+R≥70mW+70mW@160(Desktop Mode OFF) | Peak output voltage | ≥2.3V (32Ω, THD+N<1%) |
|
L+R>170mW+170mW@32Ω(Desktop Mode ON)
|
|||
|
L+R>19.5mW+19.5mW@30000(Desktop Mode ON)
|
Output impedance | <1.7Ω | |
| Frequency response | 20Hz~20kHz, damping≤0.1dB | Crosstalk | ≥72dB (1kHz, 32Ω) |
| 20Hz~50kHz, damping≤0.2dB | Noise floor | 2.5uV&1.7uV"A" | |
| THD+N | <0.0005% (0dB, 32Ω) | SNR | ≥122dB (32Ω, A-weighted) |
| Parts of performance and parameters (4.4mm headphone out) | |||
| Output power | L+R>500mW+500mW@16Ω(Desktop Mode ON) L+R>260mW+260mW@16Ω(Desktop Mode OFF) | Peak output voltage | ≥4.2V (32Ω, THD+N<1%) |
| L+R>550mW+550mW@32Ω(Desktop Mode ON) L+R≥170mW+170mW@16Ω(Desktop Mode OFF) | |||
| L+R>78mW+78mW@30000(Desktop Mode ON) L+R>20mW+20mW@160(Desktop Mode OFF) | Output impedance | <1.8Ω | |
| Frequency response | 20Hz~20kHz, damping≤0.1dB | Crosstalk | ≥110dB (1kHz, 32Ω) |
| 20Hz~50kHz, damping≤0.1dB | Noise floor | 4.6uV&3.1uV"A" | |
| THD+N | <0.0005% (-5dB, 32Ω) | SNR | ≥122dB (32Ω, A-weighted) |
Frequency Response Curve 1
Test conditions: USB DAC in, -5dB sinusoidal signal, 20Hz-20kHz PO output (32Ω load)
Blue: Left channel; Red: Right channel
THD+N Curve 1
Test conditions: USB DAC in, -2dB sinusoidal signal, 20Hz-20kHz high gain PO output (32Ω load)
Blue: Left channel; Red: Right channel
Frequency Response Curve 2
Test conditions: USB DAC in, -5dB sinusoidal signal, 20Hz-50kHz PO output (32Ω load)
Blue: Left channel; Red: Right channel
THD+N Curve 2
Test conditions: USB DAC in, -5dB sinusoidal signal, 20Hz-20kHz high gain BAL output (32Ω load)
Blue: Left channel; Red: Right channel
Frequency Response Curve 3
Test conditions: USB DAC in, -5dB sinusoidal signal, 20Hz-20kHz BAL output (32Ω load)
Blue: Left channel; Red: Right channel
Amplitude Distortion Curve 1
Test conditions: USB DAC in, 0dB sinusoidal signal PO output (600Ω)
Frequency Response Curve 4
Test conditions: USB DAC in, -5dB sinusoidal signal, 20Hz-50kHz BAL output (32Ω load)
Blue: Left channel; Red: Right channel
Amplitude Distortion Curve 2
Test conditions: USB DAC in, 0dB sinusoidal signal BAL output (600Ω)
